煤礦用阻燃電力電纜
- 品牌：???紅旗電纜“和字”牌
- 型號：???
|
產品用途:產品適用于煤礦井下額定電壓0.6/1KV及以下輸配電線路。 Scope of application:The product is suitable in coal mine mine shaft rated voltage 0.6/1KV and below loses the distribution line 執行標準 Standards implemented: MT 818-1999 |
|
型號名稱及使用范圍 Model descriptions and Use scope
|
型 號 Model
|
名 稱
Descriptions |
使 用 范 圍
Scope of application |
|
MVV
|
煤礦用聚氯乙烯絕緣聚氯乙烯護套電力電纜 PVC insulated PVC sheathed power cables for use in mines |
礦井中電能傳輸線路但不能承受機械外力作用 Energy transmission linebut not mechanical impact in mines |
|
MYJV
|
煤礦用交聯聚乙烯絕緣聚氯乙烯護套電力電纜 XLPE insulated PVC sheathed power cables for use in mines |
礦井中電能傳輸線路但不能承受機械外力作用 Energy transmission linebut not mechanical impact in mines |
|
MVV22
|
煤礦用聚氯乙烯絕緣鋼帶鎧裝聚氯乙烯護套電力電纜 PVC insulated steel tape armored PVC sheathed power cables for use in mines |
礦井中電能傳輸線路能承受一定機械外力 Energy transmission linecan bearing mechanical impact in mines |
|
MVV32
|
煤礦用聚氯乙烯絕緣細鋼絲鎧裝聚氯乙烯護套電力電纜 PVC insulated fine steel wire armored PVC sheathed power cables for use in mines |
礦井中電能傳輸線路能承受一定的拉力 Energy transmission linecan bearing some full in mines |
|
MYJV22
|
煤礦用交聯聚乙烯絕緣鋼帶鎧裝聚氯乙烯護套電力電纜 XLPE insulated steel tape armored PVC sheathed power cables for use in mines |
礦井中電能傳輸線路能承受一定機械外力 Energy transmission linecan bearing mechanical impact in mines |
|
MYJV32
|
煤礦用交聯聚乙烯絕緣細鋼絲鎧裝聚氯乙烯護套電力電纜 XLPE insulated fine steel wire armored PVC sheathed power cables for use in mines |
礦井中電能傳輸線路能承受一定的拉力 Energy transmission linecan bearing some full in mines |
|
MYJV42
|
煤礦用交聯聚乙烯絕緣粗鋼絲鎧裝聚氯乙烯護套電力電纜 XLPE insulated coarse steel wire armored PVC sheathed power cables for use in mines |
礦井中電能傳輸線路能承受較大的拉力 Energy transmission linecan bearing bear full in mines |
注：XLPE絕緣比PVC絕緣具有絕緣強度高，抗老化，耐化學腐蝕及防水性能等優點
XLPE insulation strength the PVC insulation to be higher than the anti-aging bears merits and so on chemistry corrosion and waterproof performance.
電纜規格 Specifications
|
型 號
Model |
芯 數
Core number |
額定電壓(KV)
Rated voltage |
標稱截面 mm2
Nominal sectional |
|
|
主線芯
Master core |
中性線芯(第四根芯)
Neutrality core |
|||
|
MVV MYJV
|
3
|
0.6/1
|
1.5-185
|
-
|
|
MVV22
|
2.5-185
|
|||
|
MYJV22
|
4-185
|
|||
|
MVV32 MYJV32 MYJV42
|
4-185
|
|||
|
MVV MVV22
|
3+1
|
0.6/1
|
4-185
|
2.5-95
|
|
4
|
4-185
|
|||

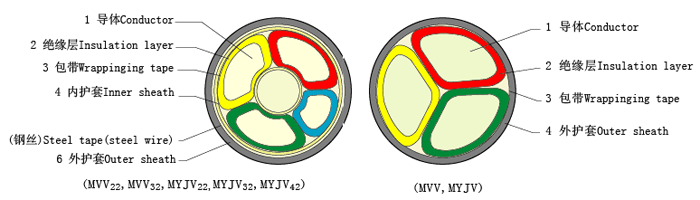

電纜結構示意圖 IIIustration of cable structure
使用特性 Service characteristics
|
電纜導體的最高額定溫度 Electric cable conductor Max. rated temperature |
XLPE絕緣90℃， PVC絕緣70℃ XLPE insulation90℃ PVC insulation70℃ |
|
電纜敷設時的環境溫度 Cable laying environment temperature |
≥0℃ |
|
短路時電纜導體的最高溫度(持續時間≤5S) Short circuit electric cable conductor max. temperature |
XLPE絕緣≤250℃， PVC絕緣≤160℃ XLPE insulation≤250℃PVC insulation≤160℃ |
|
電纜的最小彎曲半徑 Minimun bending radius |
為電纜彎曲試驗用圓柱直徑的2倍 Uses the column diameter for the electric cable bend test 2 times |
電纜主要技術性能 Major technical performances
1、 電纜導體直流電阻及絕緣電阻 Cable conductor DC resistance and insulated resistance
|
型 號
Model |
標稱截面 (mm2)
nominal sectional |
+20℃導體直流電阻(≤Ω/Km)
DC resistance of the conductor at 20℃ |
+20℃絕緣電阻常數(≥MΩ.Km)
Insulation resistance at 20℃ |
|
MVV MVV22
MVV32 MYJV MYV22 MYJV32 MYJV42 |
1.5
|
12.1
|
36.7
|
|
2.5
|
7.41
|
||
|
4
|
4.62
|
||
|
6
|
3.08
|
||
|
10
|
1.83
|
||
|
16
|
1.15
|
||
|
25
|
0.727
|
||
|
35
|
0.524
|
||
|
50
|
0.387
|
||
|
70
|
0.268
|
||
|
95
|
0.193
|
||
|
120
|
0.153
|
||
|
150
|
0.124
|
||
|
185
|
0.991
|
2、電纜其它主要技術性能 Other major technical performances
(型號Model:MKVV22、MKVV32、MKVV42、MKVV、MKVVR、MKVVP、MKVVP2、MKVVRP)
|
序 號
Serial number |
項目 Items
|
技術性能 Technical performances
|
|
|
1
|
+20℃時導體直流電阻(≤Ω/Km) Conductor DC resistance at 20℃ |
見上表 See above table | |
|
2
|
+20℃時絕緣電阻的常數(≥MΩ·Km) Insulation resistance at 20℃ |
見上表 See above table | |
|
3
|
5min工頻交流電壓試驗 5min power frequency alternating current pressure test |
芯-芯 Core-Core 芯-鎧裝 Core-Armor |
3500V不擊穿 3500V no breakdown |
|
4
|
4h交流高壓試驗 4h AC high voltage test |
2400V不擊穿 2400V no breakdown | |
|
5
|
單根垂直燃燒試驗 Single wire burning test |
MT386 | |
|
6
|
成束燃燒試驗 Group burning test |
符合GB/T18380.3標準中B類成束燃燒試驗要求 Conforms to GB/T18380.3 standard B kind group burning test |
|
